Click for Larger

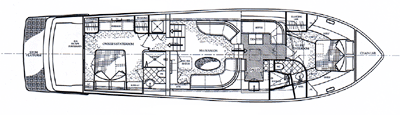

58' x 15' 8" Classic Cruiser
BASIC PARTICULARS
| Length Overall: 58 feet -- 2 1/2 inches (Ex. Swim Platform) |
| Designed Waterline Length: 53 feet -- 10 9/16 inches |
| Beam: 18 feet -- 7 inches |
| Draft: 4 feet -- 4 inches at 1/2 load |
| Displacement: 56,000 Lbs. (1/2 Load) |
| Power: 2 x Caterpillar 3126B Diesels (Ea. at 450 BHP) |
| Gearbox: ZF 280 Series at 2.478:1 Reduction |
| Fuel Capacity: 500 Gallons |
| Fresh Water Tank: 200 Gallons |
| Holding: 100 Gallons |
| Estimated Maximum Speed: 24.5 Kts. at 1/2 Load |
| William A. Schumacher Naval Architect, Inc.
1985 SE. 17th Ct. |
