W. A. Schumacher Naval Architect, Yacht and Boat Design


68' x 18' 7" Family Cruiser

Family Cruiser
Click for Larger



BASIC PARTICULARS

Length Overall:   68 feet -- 4 inches (Ex. Swim Platform)
Designed Waterline Length:   63 feet -- 4 inches
Beam:   18 feet -- 7 inches
Draft:   4 feet -- 4 inches at 1/2 load
Displacement:   78,156 Lbs. (1/2 Load)
Power:   2 x Caterpillar C -- 12 Diesels (Ea. at 700 BHP)
Gearbox:  ZF #325 at 2.25:1 Reduction
Fuel Capacity:   1,100 Gallons
Fresh Water Tank:   400 Gallons
Holding:   100 Gallons
Estimated Maximum Speed:   25.5 Kts. at 1/2 Load

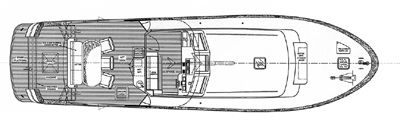

Main Deck Plan
Family Cruiser
Click for Larger

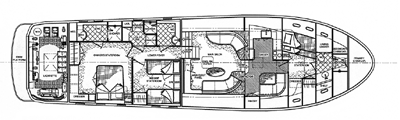

Lower Accommodations
Family Cruiser
Click for Larger
